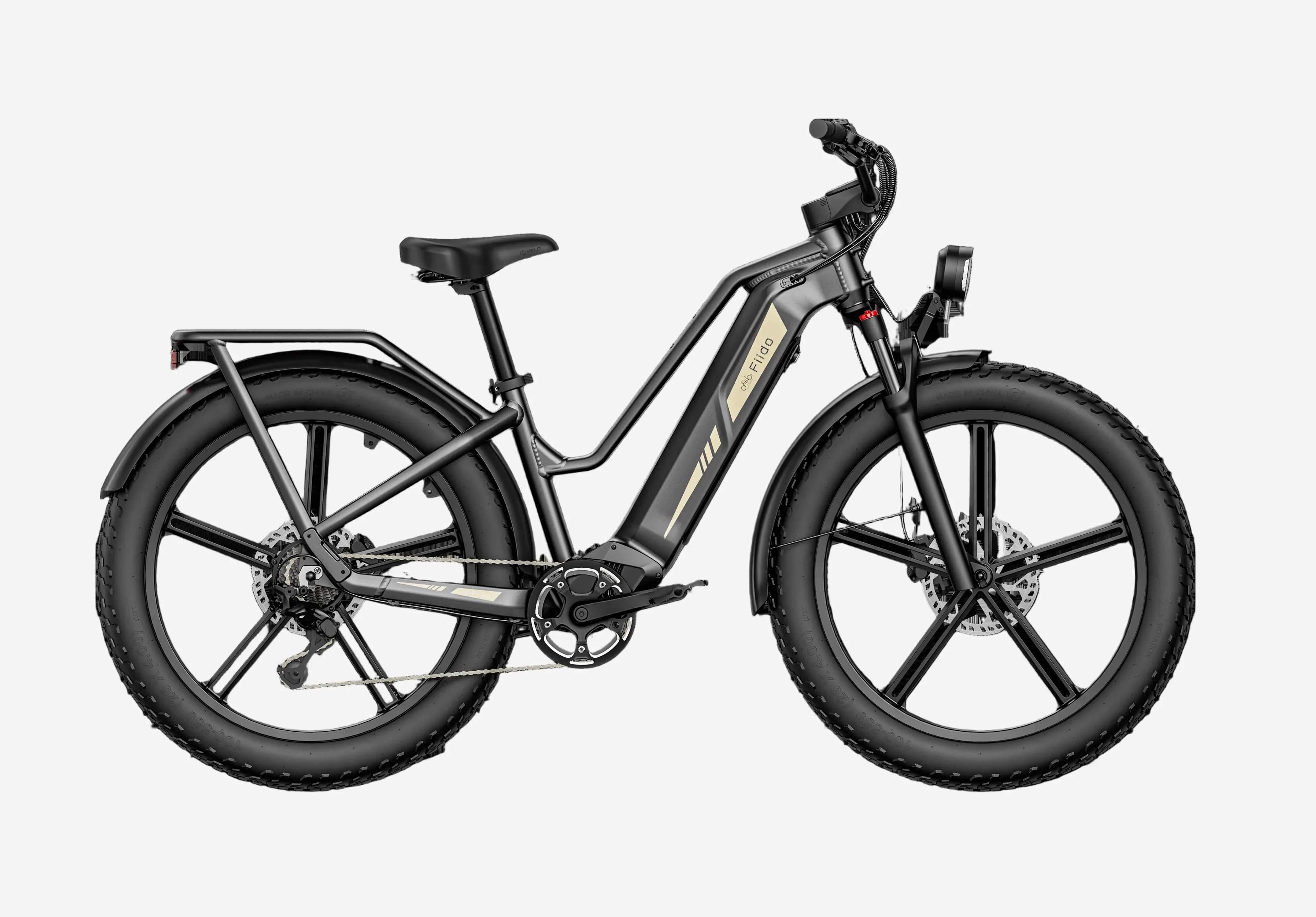

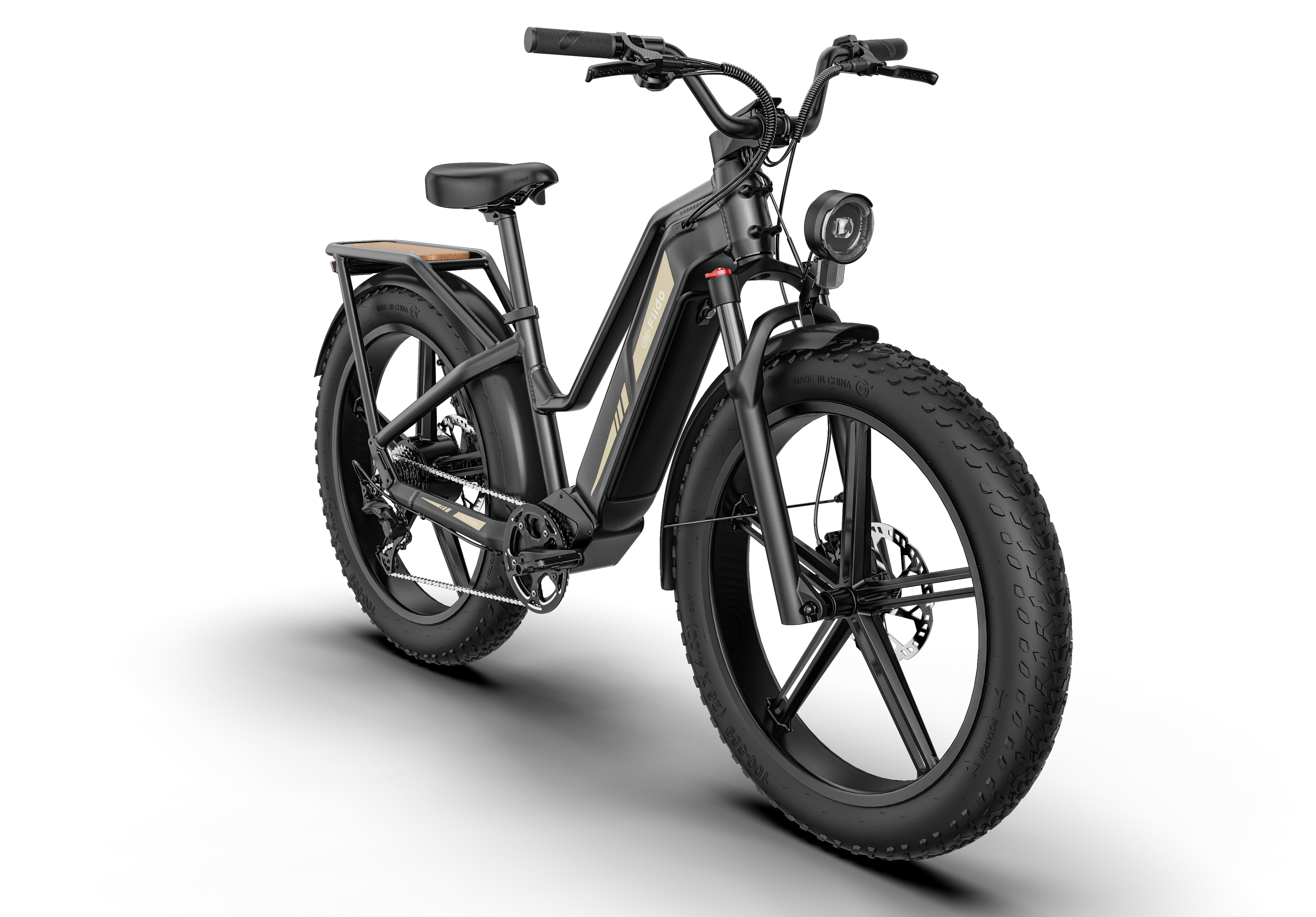

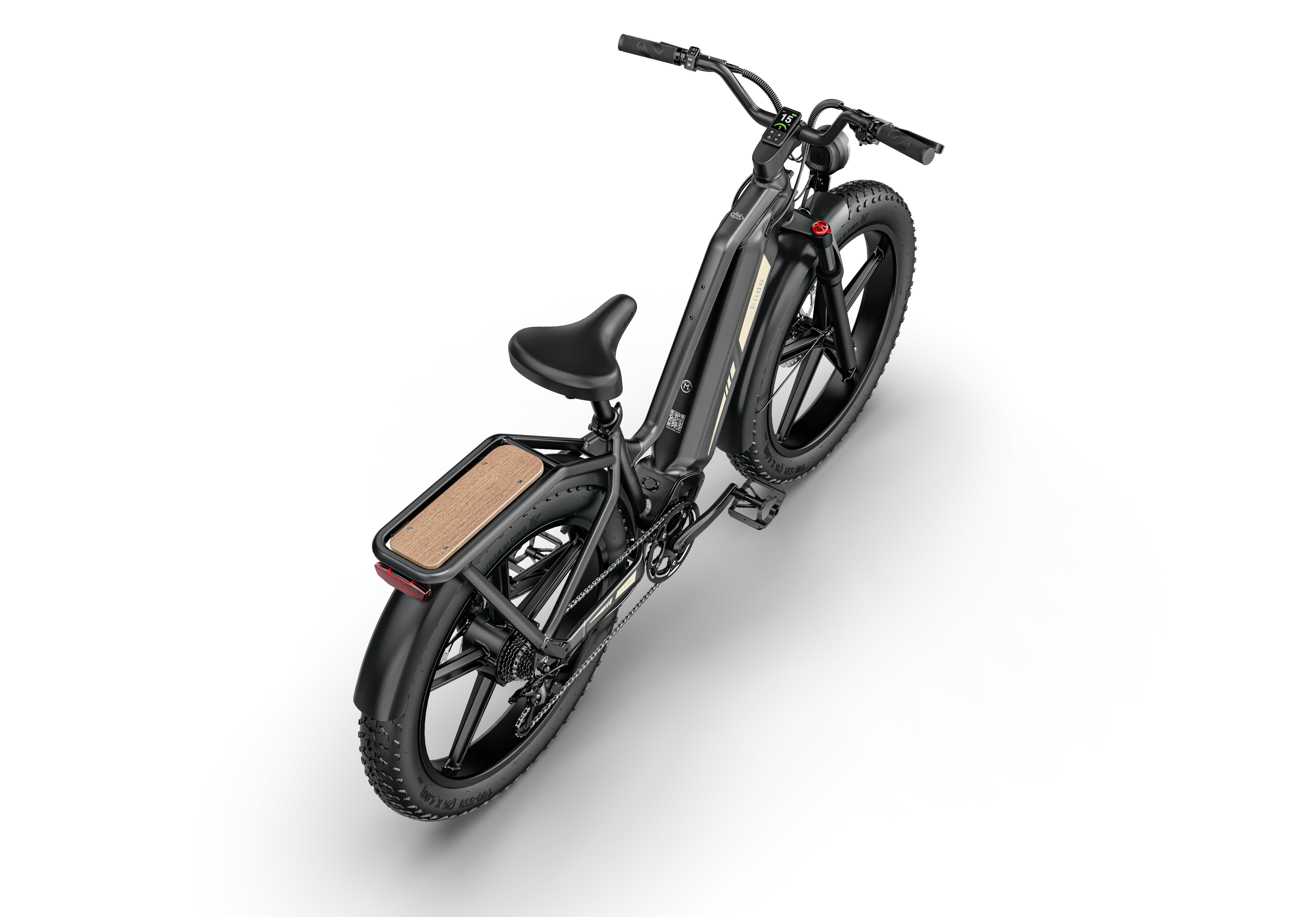

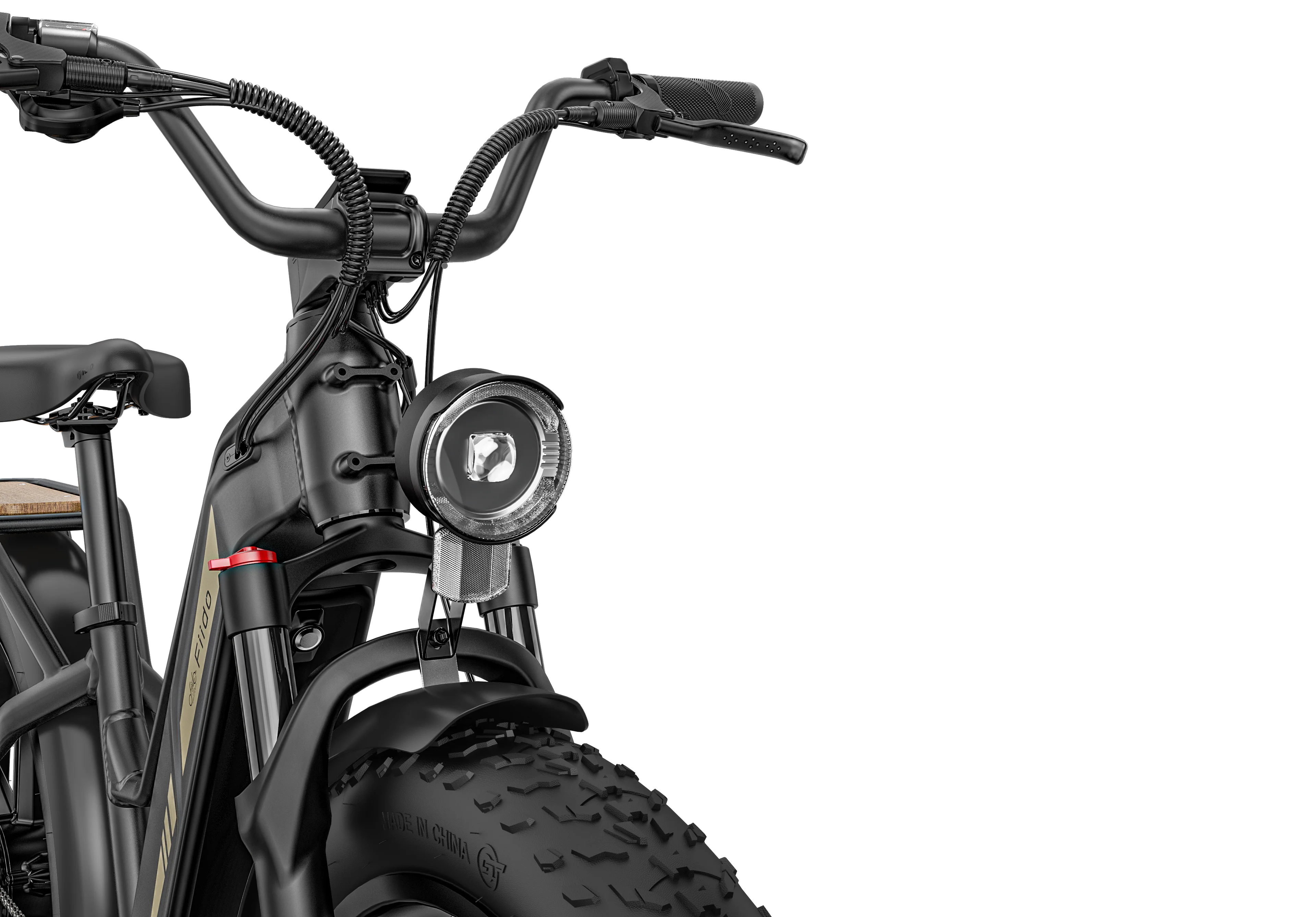

Fiido Titan Electric Bike

The Fiido Titan Electric Bike is a rugged, high-performance fat-tire e-bike engineered for adventure, utility, and all-terrain capability. Built with durability and power in mind, the Titan is designed to handle off-road trails, heavy loads, and long distances — making it perfect for outdoor explorers, delivery riders, and utility-focused commuters.

---

Key Features

Heavy-Duty Frame Design:
The Titan features a reinforced aluminum alloy frame with a payload capacity of up to 200 kg, making it suitable for carrying gear, cargo, or even an additional passenger. The step-over frame design ensures strength and stability across rough terrain.

Powerful Motor:
Equipped with a 250W 55Nm Brushless Toothed High-speed Motor, the Titan delivers strong acceleration, confident hill-climbing, and smooth performance on all terrain types.

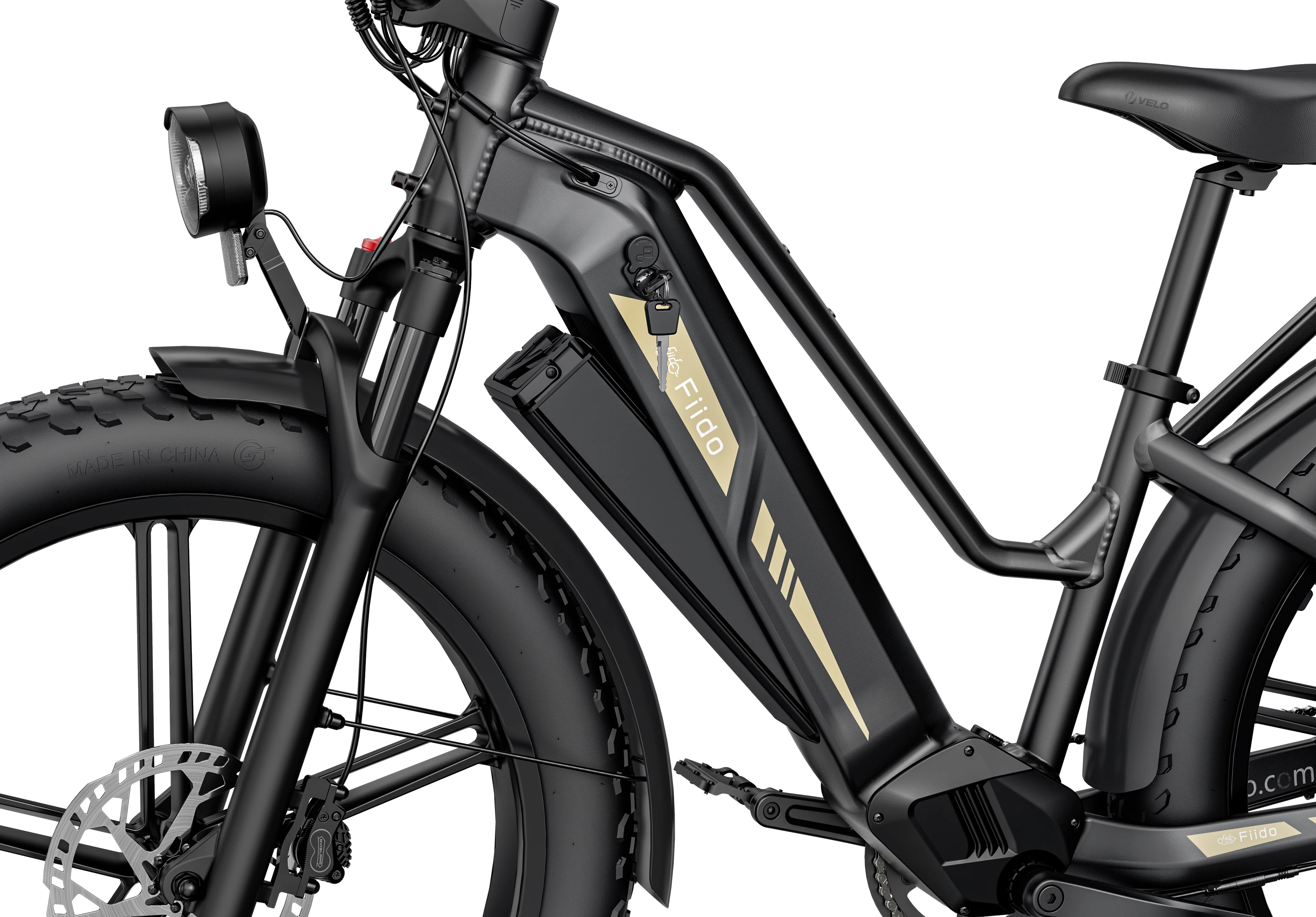

High-Capacity Battery:
The DMEGC 696Wh battery with a 48V 3A charger provides impressive range for long-distance rides.

Fat Tires for All Terrain:
The Titan rides on CST 26 x 4.0-inch fat tires, providing maximum grip and shock absorption on sand, snow, gravel, or mud, ensuring comfort and control across all surfaces.

Advanced Suspension System:
The aluminum alloy hydraulic shock-absorbing front fork with 60 mm of travel absorbs bumps and shocks for a smoother ride across varied terrain.

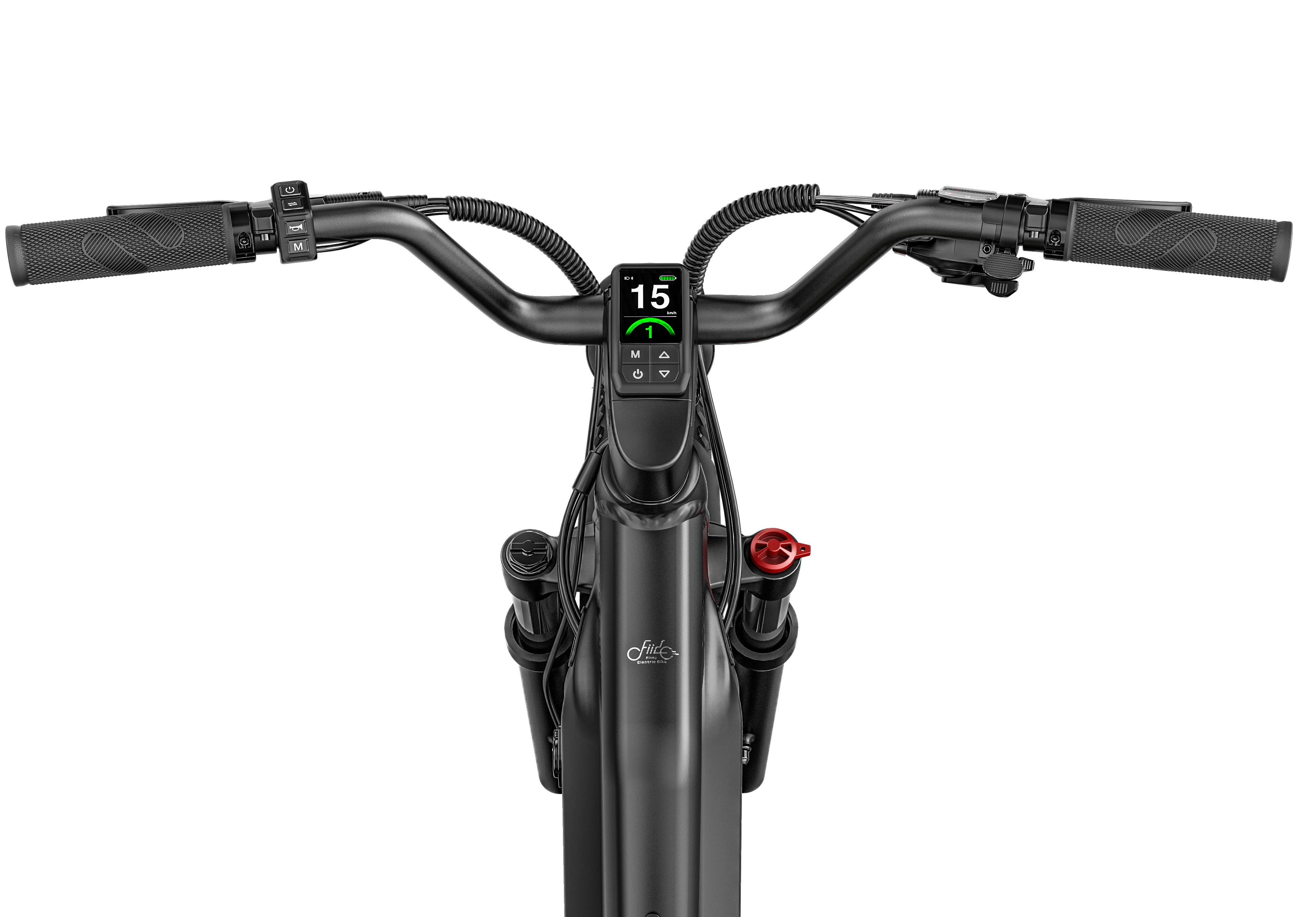

Smart LCD Display:
A 2.4-inch LCD display provides clear readouts of speed, distance, battery level, and power mode, keeping you fully informed during your ride.

Hydraulic Disc Brakes:
Four-piston hydraulic disc brakes with power cut-off deliver reliable, high-performance stopping power even under load or in wet conditions.

---

Specifications

Details

• Model Name: TITAN
• Model Code: M25
• Net Weight: 37.8 kg
• Payload: 200 kg (Saddle: 120 kg + Rear rack: 80 kg)

Frameset

• Frame: 26-inch aluminum alloy frame
• Fork: Aluminum alloy hydraulic shock-absorbing front fork (suspension travel 60mm) with 135mm opening width
• Headset: Aluminum alloy bearing headset

E-System

• Drive Unit: 250W 55Nm Brushless Toothed High-speed Motor
• Battery: DMEGC 696Wh
• Charger: 48V 3A
• Display: LCD 2.4 inch
• Throttle: Yes (max speed 6 km/h)

Drivetrain

• Rear Derailleur: DSL-D310 9-Speed
• Shifters: RD-D310 9-Speed Index Shifter
• Chain: KMC X9 9-Speed Chain
• Crank: Aluminum alloy 42T
• Rear Cogs: CS-M300 11-36T 9-Speed Cassette
• Sensor: Torque Sensor Mivice S200

Brakes

• Brakes: Four-piston hydraulic disc brake with power cut-off

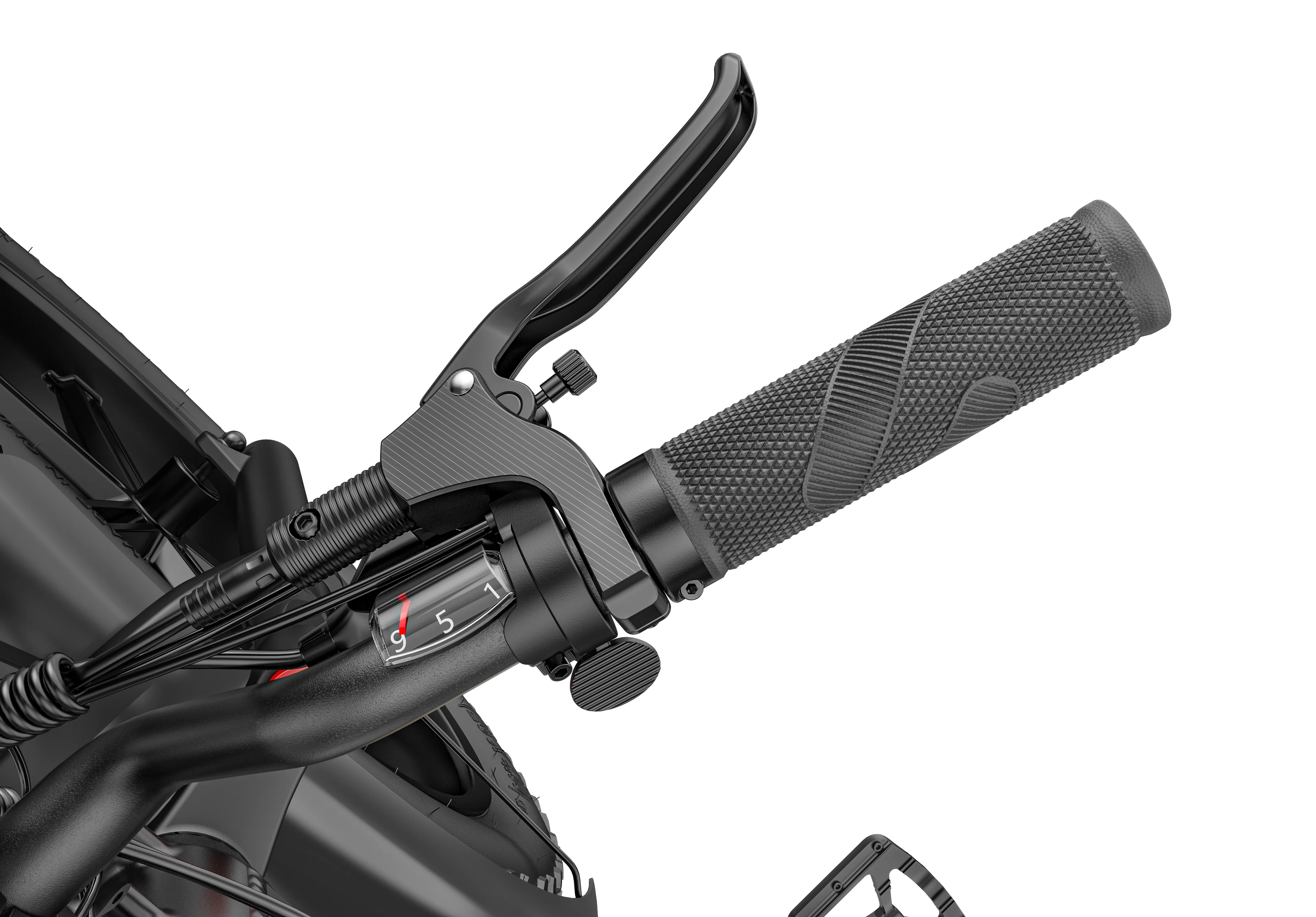

• Brake Levers: Aluminum alloy three-finger brake lever

Wheels

• Front Hub: Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm)
• Tires: CST 26*4.0

Components

• Handlebar: Aluminum alloy (Length: 680mm, Maximum diameter: 25.4mm, Minimum diameter: 22.2mm)
• Stem: Aluminum alloy stem
• Grips: TPR non-slip handle grip (Length: approx. 130mm)
• Saddle: VELO vacuum full-fit saddle
• Seatpost: Aluminum alloy clamp head seatpost (Length: 400mm; Diameter: 33.9mm)

---

Ideal For

The Fiido Titan is ideal for adventurers, utility riders, and off-road commuters who demand strength, range, and rugged performance. Whether hauling cargo through the city or exploring remote trails, the Titan is built to go the distance — with comfort, power, and style.
