Engwe MAPFOUR N1 AIR Electric Bike

The ENGWE MapFour N1 Air is a premium, ultra-lightweight carbon fiber electric bike designed for urban commuters seeking performance, portability, and smart features. With its sleek design and advanced technology, it offers a comfortable and efficient riding experience.

---

Key Features

• Ultra-Lightweight Frame: Crafted from high-quality carbon fiber with an aluminium fork, the N1 Air weighs just 15.6 kg — exceptionally easy to handle and transport.

• Powerful Motor: MIVICE M070 rear hub motor delivering 40 Nm of torque with torque sensor assist for smooth, natural pedal assistance up to 25 km/h.

• Long-Range Battery: 36V 10Ah Samsung removable lithium-ion battery offering up to 100 km range (PAS 1 level) on a single charge.

• Lighting: Front light and solar tail light for enhanced visibility and safety in all conditions.

• Braking System: 160mm mechanical disc brakes front and rear for reliable stopping power.

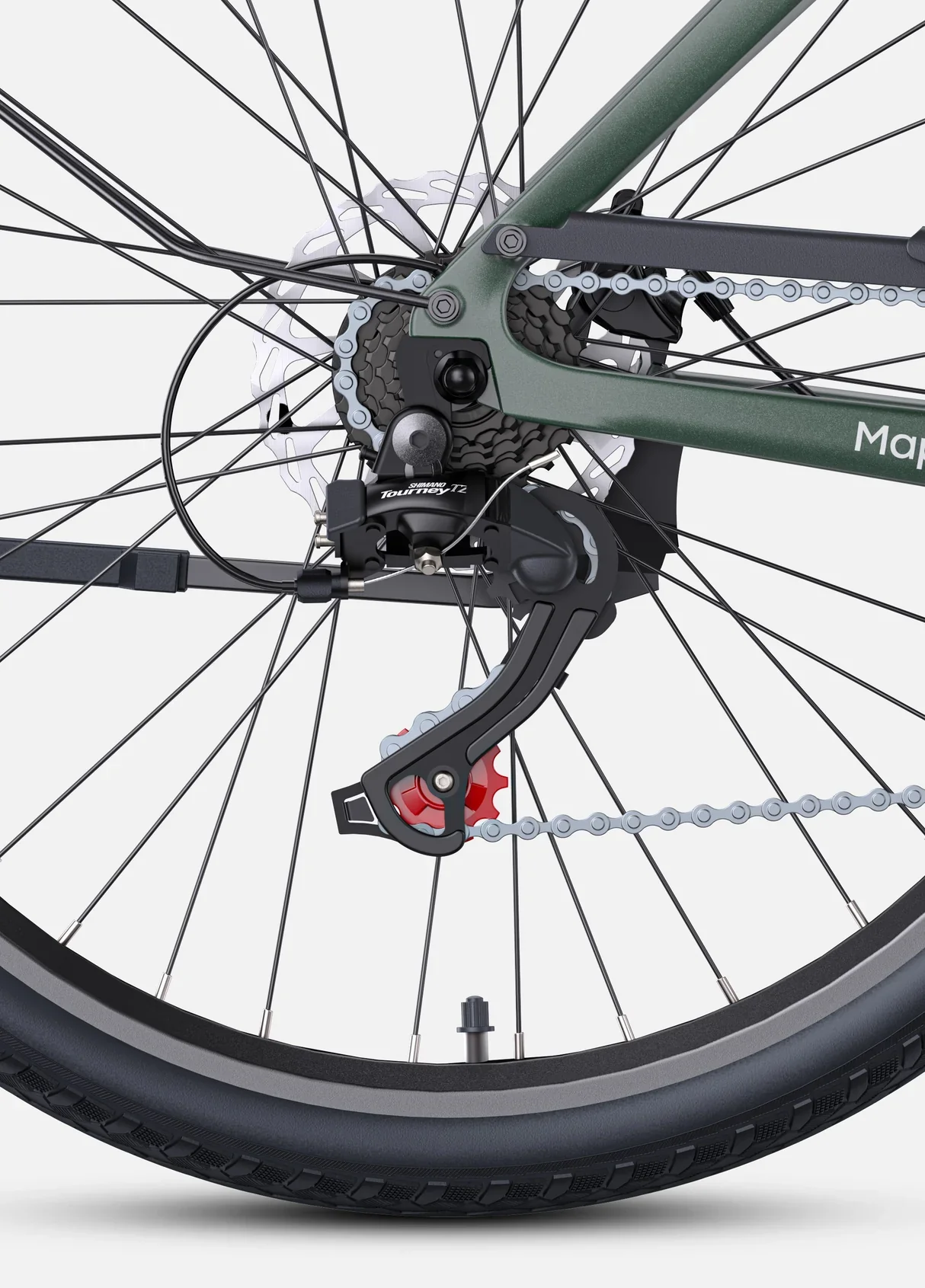

• Transmission: Shimano 7-speed gear system for versatile riding across different terrains.

• Display: LCD colour display providing real-time information on speed, battery level, and riding mode.

---

📏 Specifications

• Frame Material: Carbon Fiber

• Fork: Aluminium

• Motor: MIVICE M070 Rear Hub Motor

• Sensor: Torque Sensor

• Max Torque: 40 Nm

• Battery: 36V 10Ah Samsung Removable Lithium-ion

• Max Speed: 25 km/h

• Mileage: 100 km (PAS 1 level)

• Charging Time: Approximately 5–8 hours (varies with battery usage)

• Maximum Climbing Degree: 10°

• Tires: 700 × 38C Spoke Tyres

• Transmission: Shimano 7-Speed

• Brakes: 160mm Front & Rear Mechanical Disc Brakes

• Display: LCD Colour Display

• Lights: Front Light & Solar Tail Light

• Bike Weight: 15.6 kg (34.39 lbs)

• Gross Weight: 25.4 kg (55.99 lbs)

• Payload Capacity: 120 kg (264.5 lbs)

---

📦 Size & Packaging

• Rider Height: 5'5" – 6'7" (approx. 165–200 cm)

• Payload Capacity: 120 kg (264.5 lbs)

• Package Dimensions (L×W×H): 148.4 × 22.5 × 73 cm

---

👥 Geometry — N1 Air

• A – Wheelbase: 110.5 cm

• B – Total Length: 181 cm

• C – Reach: 44 cm

• D – Standover Height: 75.5 cm

• E – Minimum Saddle Height: 82.5 cm

• F – Maximum Saddle Height: 95 cm

• G – Min Handlebar Height: 105 cm

• H – Max Handlebar Height: 112 cm

👥 Geometry — N1 Air ST

• A – Handlebar Height: 109.1 cm

• B – Total Length: 179.7 cm

• C – Reach: 42 cm

• D – Standover Height: 75.8 cm

• E – Wheelbase: 84.5 cm

• F – Min Saddle Height: 100 cm

• G – Min Handlebar Height: 105 cm

• H – Max Handlebar Height: 112 cm

Please note: There may be a difference of 0–5 cm between measured and actual data.

---

Ideal For

The ENGWE MapFour N1 Air is perfect for urban commuters and leisure riders seeking a lightweight, efficient, and capable electric bike. Its combination of carbon fiber construction, torque sensor assist, and long-range battery caters to those who value performance and convenience in their daily rides.
