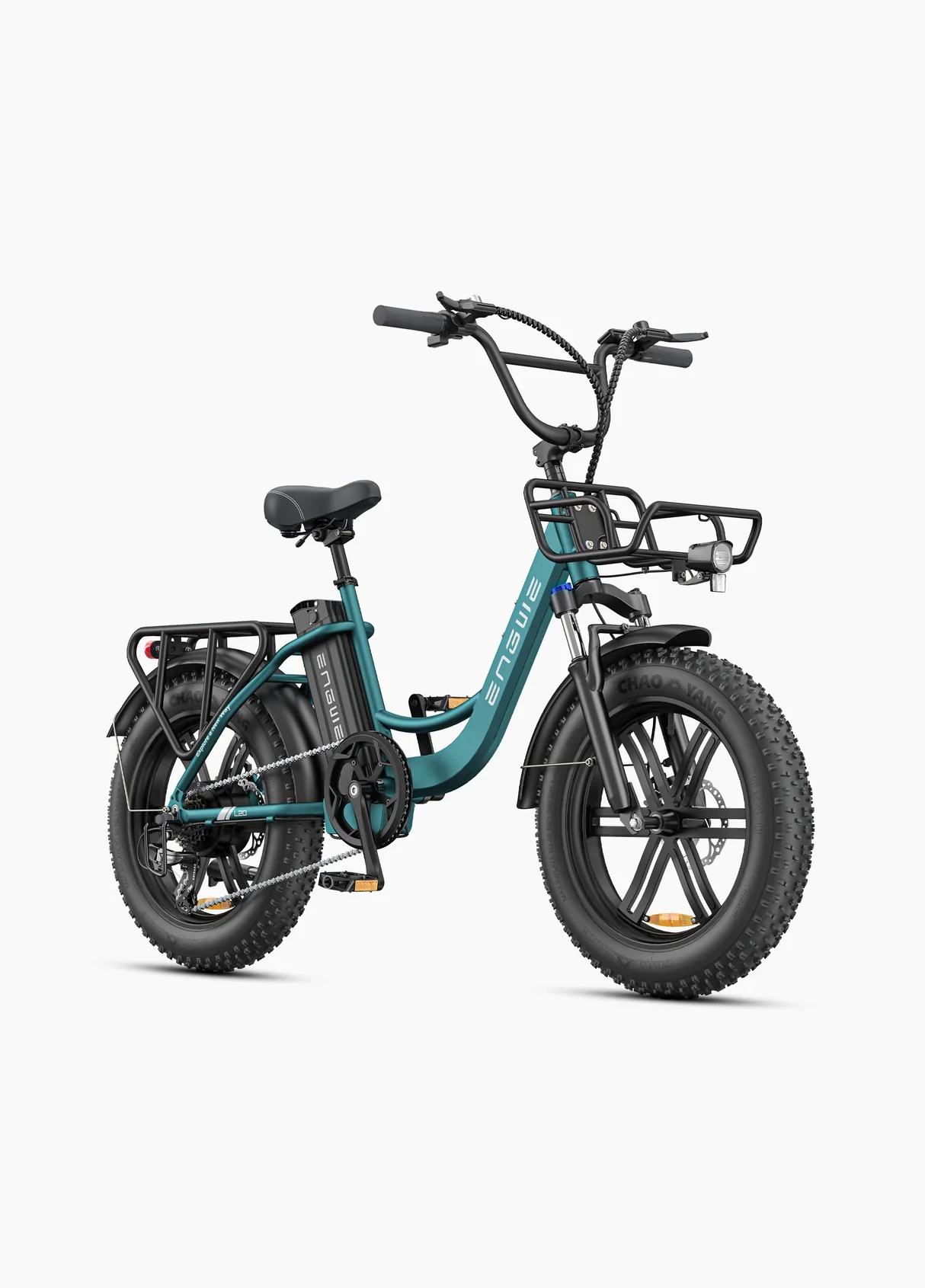

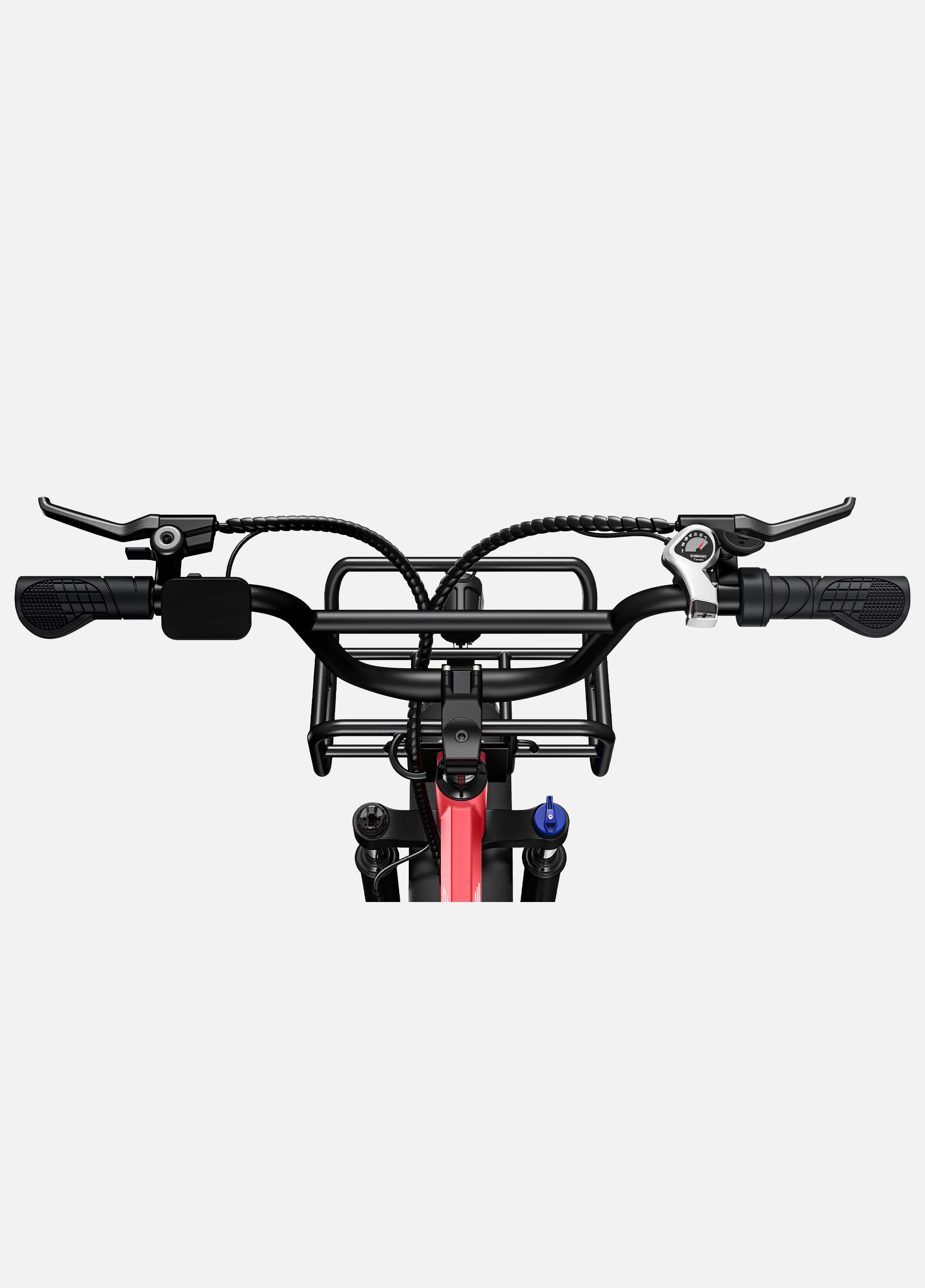

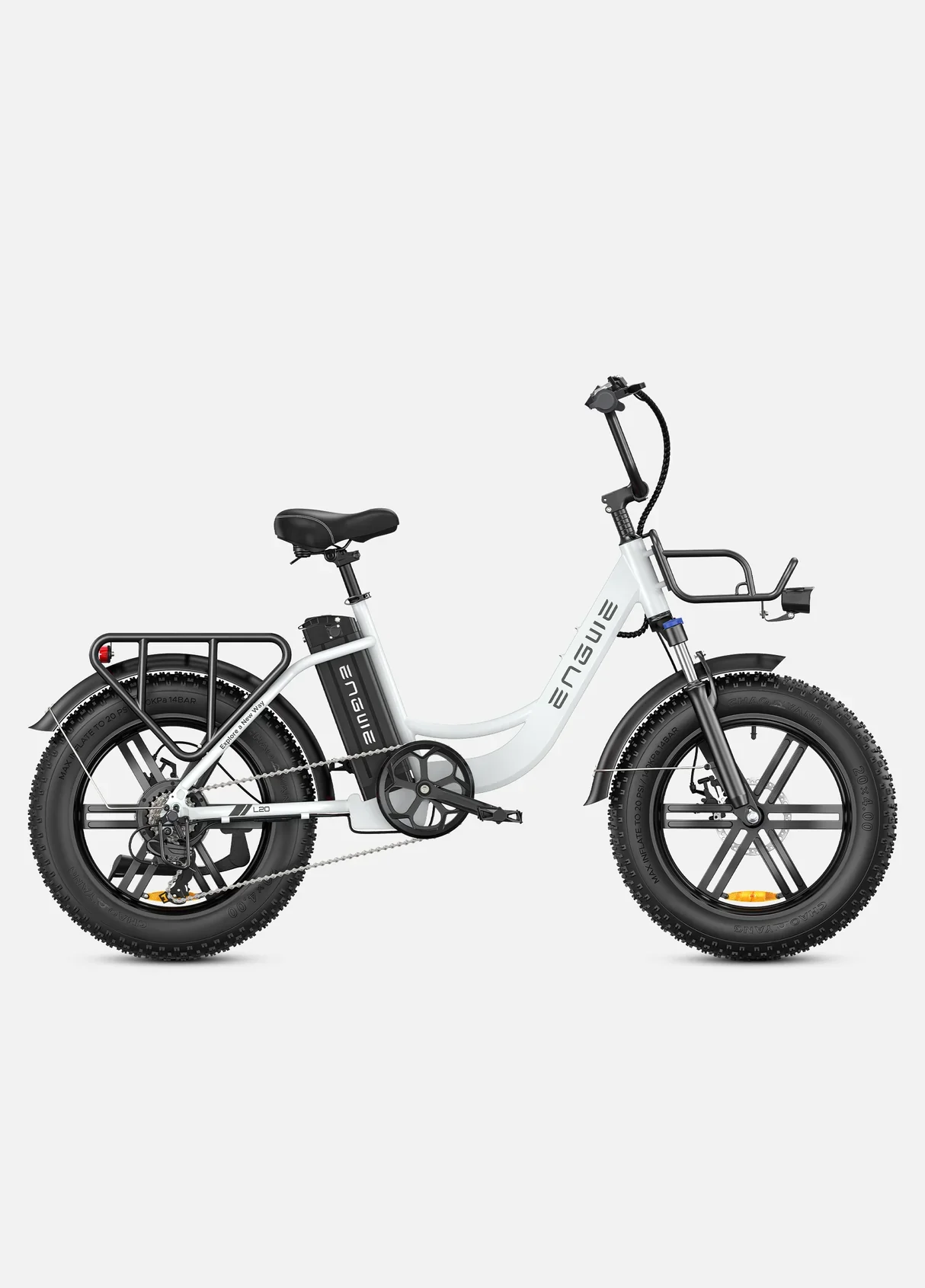

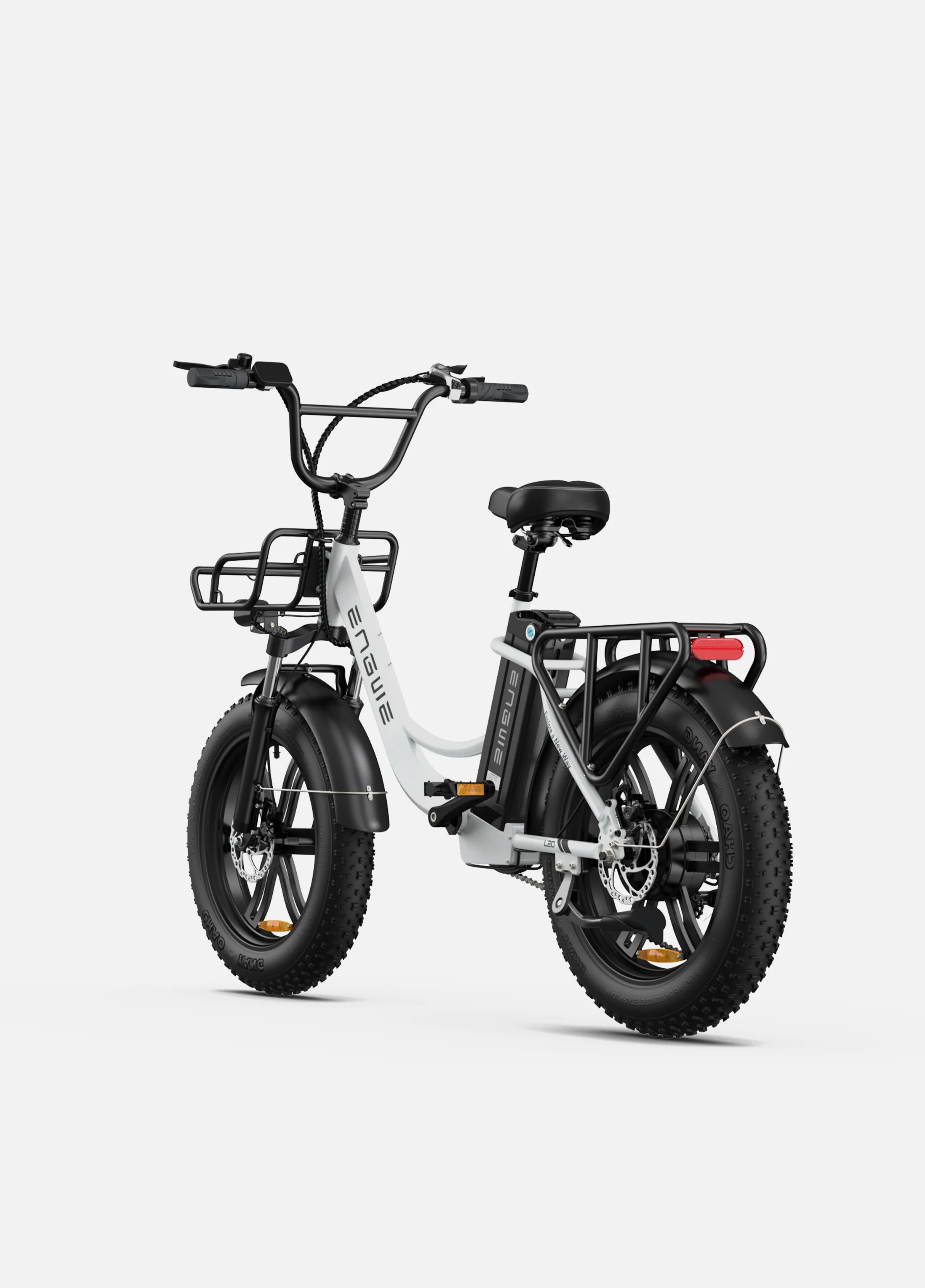

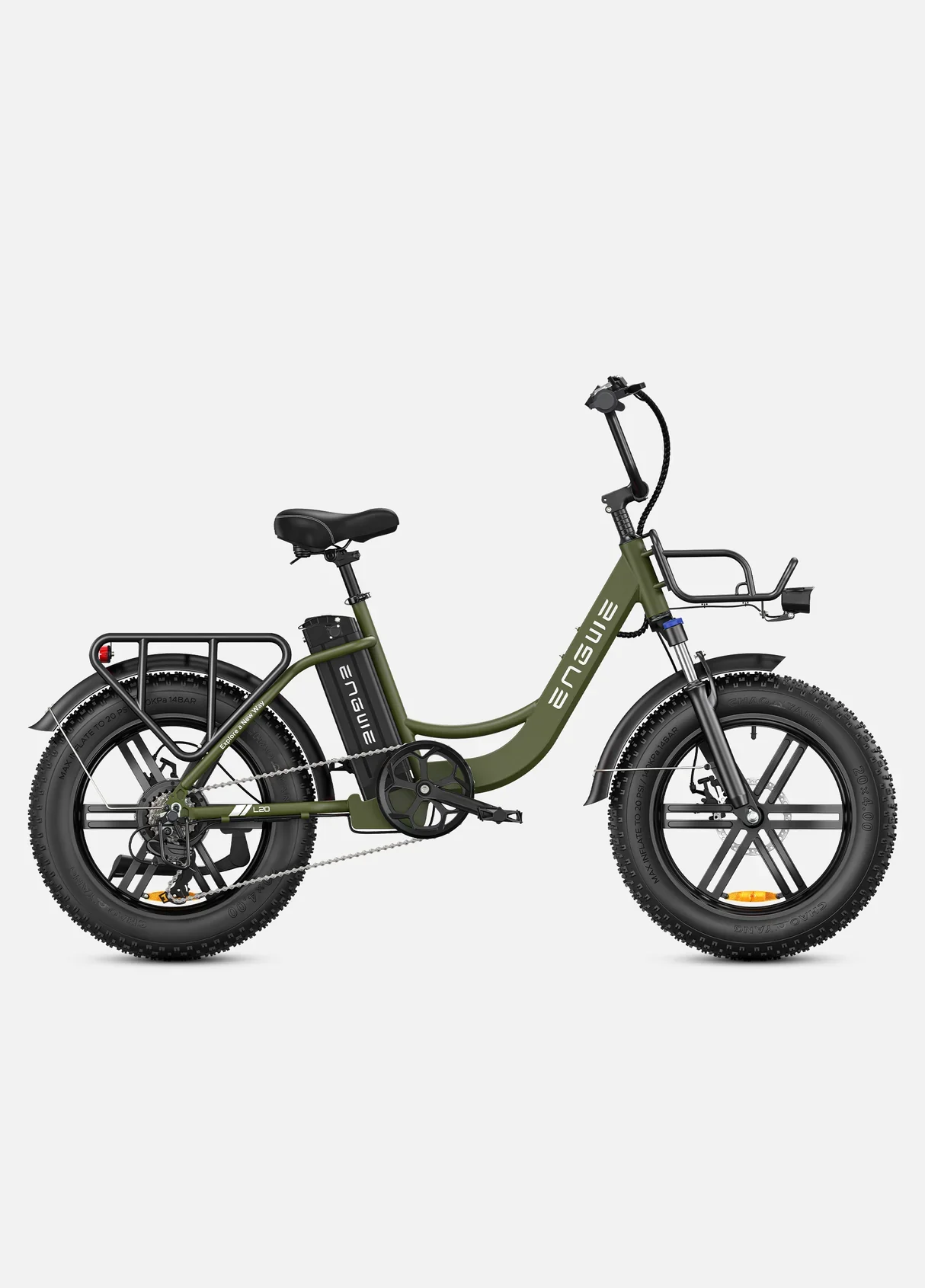

Engwe L20 3.0 Boost Electric Bike

The ENGWE L20 3.0 Boost is a versatile, foldable electric bike designed for urban commuting and light off-road adventures. With its powerful hub motor, long-range battery, full suspension, and smart connectivity, it delivers a comfortable and efficient riding experience for a wide range of cyclists.

---

Key Features

• Motor & Power: 48V Hub Motor delivering 75 Nm of torque with torque sensor assist for seamless, responsive power matched to your pedalling effort.

• Battery & Range: 48V 13.5Ah (648Wh) battery with 21700 cells and BMS protection. Lab-tested range of 135 km; real-world range of 120 km (PAS 1), 100 km (PAS 3), or 85 km (PAS 5).

• Fast Charging: 54.6V 8A charger for rapid top-ups and minimal downtime.

• Full Suspension: Hydraulic adjustable lockout front fork (aluminium & iron) and 30mm rear travel for a smooth, comfortable ride across all surfaces.

• Tires: 20" × 3.0" Urban Hybrid Tyres with a 3mm anti-puncture layer for enhanced grip and puncture resistance.

• Braking System: Hydraulic dual-piston disc brakes with 180mm rotors front and rear for confident, reliable stopping power.

• Smart Connectivity: Bluetooth-enabled 3.5" LED colour display with ENGWE App control.

• Lighting: 30 Lux front light with integrated e-horn. Auto-brightening rear light when braking or shaking.

• Foldable Design: Compact step-through frame folds quickly for easy storage and transport.

---

📏 Specifications

General

• Model: L20 3.0 Boost

• Bike Weight: 33.2 kg (73.2 lbs)

• Gross Weight: Approx. 42 kg (92.6 lbs)

• Max Load Capacity: 150 kg (330 lbs)

• Rider Height: 155 cm – 190 cm (5'1" – 6'3")

• Pedal Assist: 5 Levels

• Lab Tested Range: 135 km (Fully Charged)

• Real-World Range: 120 km (PAS 1) / 100 km (PAS 3) / 85 km (PAS 5)

• Waterproof Rating: IPX7 (Wiring) / IPX6 (Display & Lights) / IPX5 (Motor & Controller) / IPX4 (Battery Box)

• Certification: CE (EN15194)

• Terrain: Tarmac Roads, Gravel-Paved Paths, Sandy Beaches & Grass, Country Roads & Paved Trails

Frame & Fork

• Frame Material: 6061 Aluminium Alloy, Internal Battery, Step-Through Design

• Frame Style: Compact, Full Suspension

• Fork: Hydraulic, Adjustable Lockout, Aluminium & Iron

• Rear Suspension Travel: 30mm

Wheels & Tyres

• Tires: 20" × 3.0" Urban Hybrid Tyres

• Puncture Protection: 3mm Anti-Puncture Layer

• Wheels: 20-inch, Double-Wall Aluminium, 36-Hole, 12-Gauge Spokes, Black

E-Bike System

• Motor: 48V Hub Motor

• Max Torque: 75 Nm

• Assist System: Torque Sensor

• Battery: 48V 13.5Ah (648Wh), 21700 Cells with BMS Protection

• Charger: 54.6V 8A Output

• Display: 3.5" LED Colour Display, ENGWE-Designed, Mid-Position, with Bluetooth

• ENGWE App: App Control Available

• Front Light: 30 Lux with Integrated E-Horn

• Rear Light: Auto-brightens when braking or shaking

Brakes

• Brake Type: Hydraulic, Dual-Piston

• Disc Rotor: 180mm Front & Rear

Drivetrain

• Chain: C8R8 Anti-Rust, 116 Links

• Chainring: 52T

• Crank: 170mm

• Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed

• Shifter: Shimano SL-M315-7R

• Cassette: 7-Speed, 14T–28T

• Pedals: Boron Steel, Non-Foldable

Cockpit

• Handlebars: 680mm Width

• Stem: Foldable

• Saddle: ENGWE Soft Saddle

• Seat Post: 10-Level Adjustable

• Seat Clamp: Quick-Release

---

👥 Geometry

• A – Handlebar Height: 110.2 cm

• B – Total Length: 168.0 cm

• C – Reach: 47.2 cm

• D – Standover Height: 38.0 cm

• E – Wheelbase: 112.5 cm

• F – Min Saddle Height: 82.0 cm

• G – Max Handlebar Height: 102.0 cm

---

📦 Size & Packaging

• Rider Height: 155 cm – 190 cm (5'1" – 6'3")

• Max Load Capacity: 150 kg (330 lbs)

• Package Dimensions (L×W×H): 144 × 27 × 64 cm

Folded Size: 100 × 51 × 75 cm

• A – Height: 75 cm

• B – Length: 100 cm

• C – Width: 51 cm

---

Ideal For

The ENGWE L20 3.0 Boost is perfect for riders seeking a powerful and versatile e-bike that handles both daily commutes and light off-road trails with ease. Its combination of range, torque, full suspension, and smart features caters to a wide range of cycling enthusiasts.
